Portable digital electrocardiograph

Description

Portable electrocardiography equipment. It can acquire up to 6 channels at 10kHz. It can be powered either with a power cord to the mains or with the supplied battery. It is light and has low power consumption. It has a 3.5" screen and it can store acquisitions in SCP format. Thanks to its 832 points thermal printing header it can print 6 channels in real-time or from previously stored files. The printing header control is done entirely in VHDL, which allows to print at speeds of 10, 20 and 50 mm/s. Data can be automatically interpreted based on HES(R), and can be run through muscular, drift or power mains filters. Depending on the model, it also has a T wave filter and a pacemaker detector.

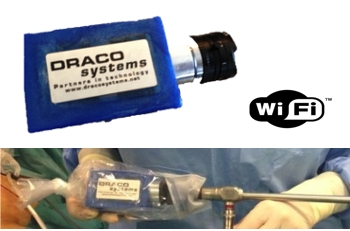

IP Camera for Medical Applications

Description

A new small form factor wireless HD colour camera with low latency H.264 streaming, hall effect sensor for power on and Qi inductive battery charger has been developed. The camera architecture is based on an ARM9, a hardware video coprocessor from TI, and a Wi-Fi module working at 2.4 & 5 GHz (802.11 a/b/g/n) from Murata. Furthermore, it contains a 5Mpixel CMOS colour sensor, a SDHC card for video recording, and Bluetooth. It is a low power consumption (<3W) device and has autonomy for 5/6 hours in a compact 40x40x20mm size. The camera is adaptable to each technology needs. Thanks to its access point capability, its size and its weight, is able to send HD live stream towards mobile phone, tablet or laptop devices where it could be visualized using an standard player such as Mplayer

Targeted applications

Success case: IP camera for endoscopy

Small camera for arthroscopy and laparoscopy operations for human and animals.

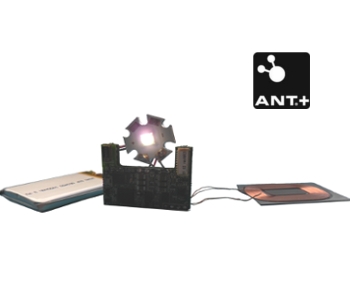

LED Torch

Description

Wireless LED lamp for a number of applications such as sports or medical. It has Qi inductive system included to simplify the recharging procedure.

Intelligent robot

Description

This hardware platform will be the core of a intelligent robot. Thanks to the powerful architecture it will enable a broad number of features such as emotions recognition (happiness, sadness, …), voice recognition, play music, move robot joints (head, eyes, eyebrows, arms,..), give you the temperature,…

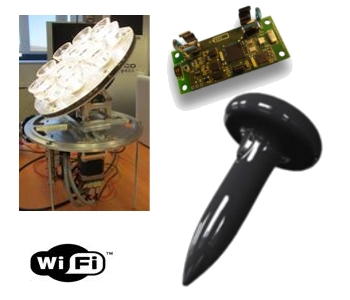

Inertial Sensor

Description

A Tri axis data pointer for remote medical applications such a motorized light system. It allows you to compute the relative position in 3D to help you to move other elements in a wireless manner.

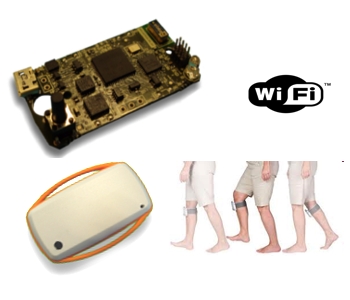

Sensor for Remote Rehabilitation

Description

A number of sensors to monitor patient during the rehabilitation either at the physic centre or at their home. It may allow you to activate the feedback or other parameters to patient track and compare their improvements.
